Drive Controller Board Fit LM116LF2L LTN116HL02 LM116LF1L LM116LF3L 1920x1080 Laptop Screen EDP-30Pin 1920*1080 HDMI+VGA DIY Kit

  1, Please ensure that your screen can still power on and display normally. If your screen is damaged, please do not place an order as the controller board cannot repair or drive the damaged screen. You can refer to our demonstration video to connect the screen to the original laptop for testing. Or use a screen tester to test.

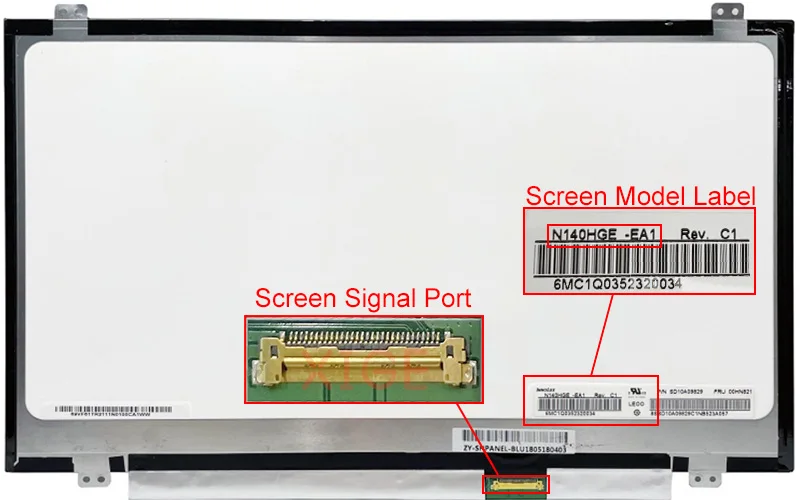

  2, We will install driver firmware for free according to your screen model in order to use it properly. So, please select the model from the list that is exactly the same as your screen (including the model suffix). If your screen model is not on our sales list. Please send us a photo of the model label and signal port on the back of the screen first to help you confirm (do not place an order blindly to avoid unnecessary disputes). As shown in the reference photo below:

Controller board description:

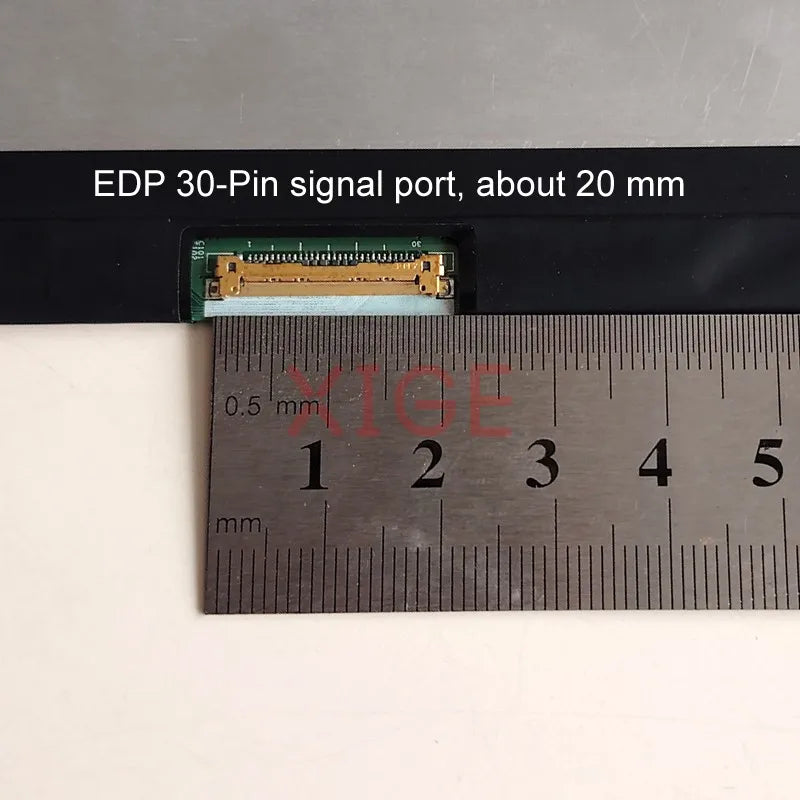

This controller board only suitable for EDP 30-pin (0.5mm space) Laptop screen.

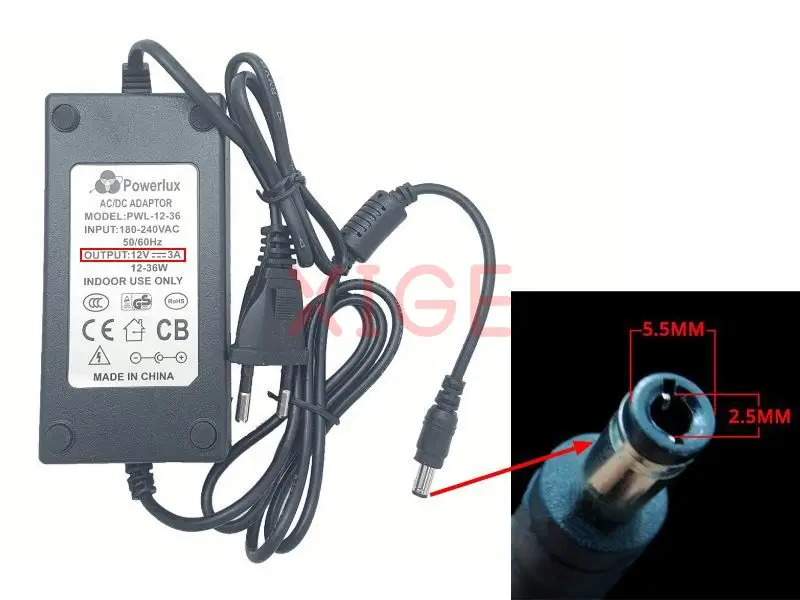

Controller board input power supply: DC 12V 3A (DC Port: 2.5MM and 5.5MM inner+ outside-)

Please note: Do not use power adapters with voltages exceeding 12 volts. This will damage the control board.

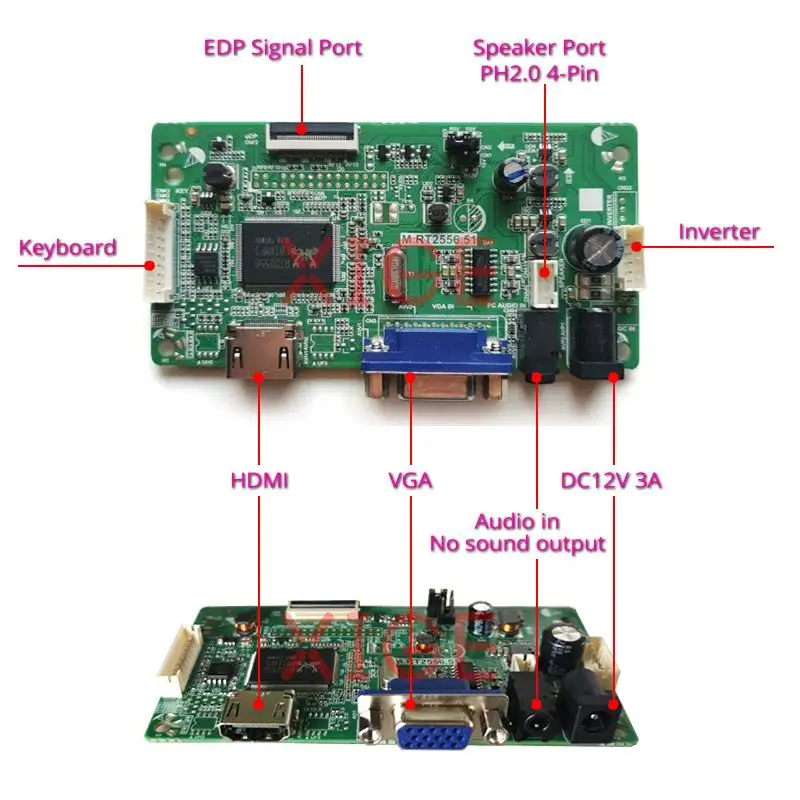

Input: HDMI, VGA, Audio

Audio output: PH2.0 4-pin speaker port (requires self purchase of speaker)

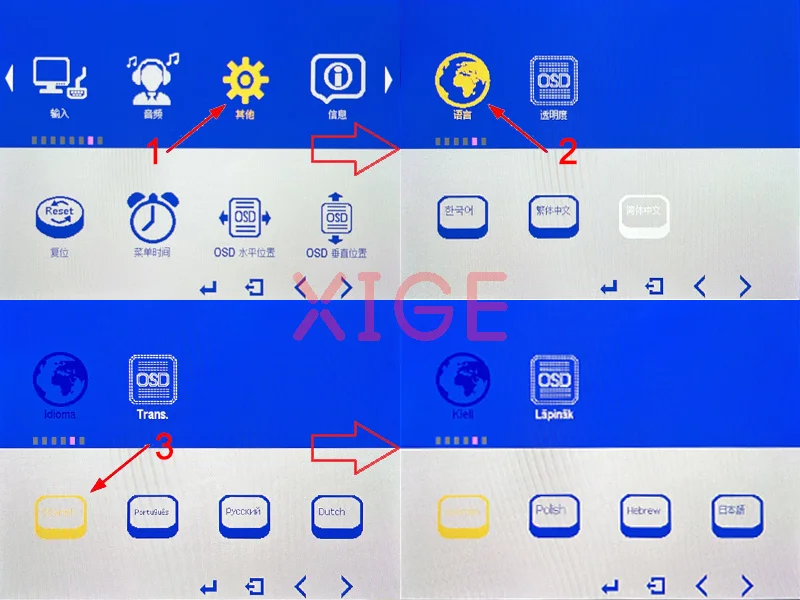

OSD Language: Chinese, English, Spanish, German, Japanese, Korean

When the correct signal source input is not detected. The controller board will automatically enter standby mode. The keypad cannot respond. Please connect the correct signal source.

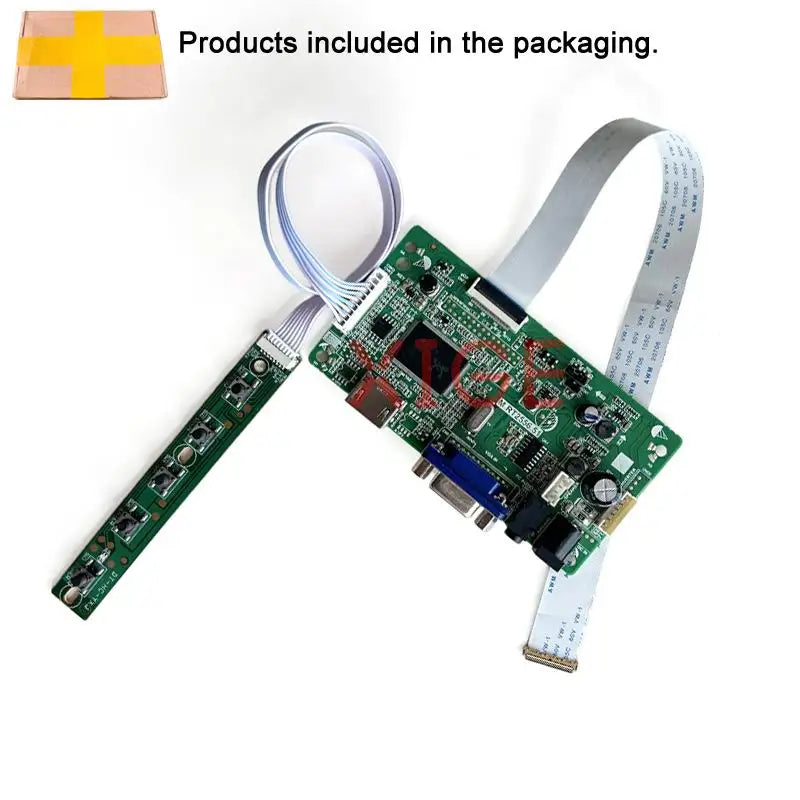

Packaging List:

1 Pcs x Controller motherboard

1 Pcs x EDP 30-pin signal cable

1 Pcs x Keyboard with cable
